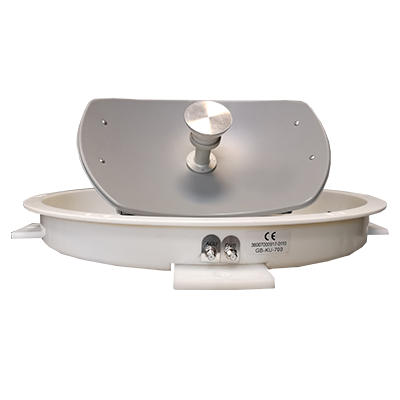

SATTECH Caravan Satellite Dish

Vehicle Satellite Tv Dish

SATTECH HD

It is a system developed with state-of-the-art technology so that vehicles can receive satellite TV broadcasts continuously. Whatever your speed is, it offers you the quality of satellite TV broadcasts while driving with your vehicle.

It is compatible with headend systems and allows to receive both vertical and horizantal broadcasts at the same time.

Suitable for buses, minibuses, motorhomes, trains and jeep cars.

It has dual output features and it can receive satellite broadcasting independently with 2 receivers. Thanks to automatic navigation technology, it provides a minimum reaction from structures and high trees.

The Sattech car satellite dish, which has fast satellite tracking and easy handling, offers a stylish appearance to your vehicle with its 22cm height and ergonomic design.

Sattech-Mobile Sattech-Mobile
Sattech HD
This is RV, bus, sat.antenna.manevr satellite capability used in land vehicles, such as vans and trains is not affected by the high speed limit.
Get Offer

Technicial Specifications

  • Frequency Band: KuBand
  • Operating Frequency: 10.7 -12.75GHZ
  • Dish Diameter: 39 CM
  • Cover Diameter: 48 CM
  • Cover Height: 22 CM
  • Antenna Weight: 4 KG
  • Antenna Gain: 32 dBi
  • Min.EIRP: 49 dBW
  • Polarization: Horizontal-Vertical / RHCP-LHCP
  • Fastening: 2 Axis DC Stepper Motor
  • Elevation Ratio: 19-62 Degrees
  • Azimuth Rate: Unlimited
  • Tracking Rate: <45 Seconds
  • Operating Temperature: -25C / + 60C
  • Waterproof: IP56
  • Power: 12VDC-24VDC / 2 AMP
  • Output: 2/1 Zone V / H
